Crane System for Pre Engineered Buildings in India
Heavy Lifting Solutions • Structural Steel Integration
A strong crane system helps your factory lift, move and place heavy material safely, every single day. At Kaizen Smartbuild, we are a trusted PEB crane system manufacturer in India. We design, fabricate and install the crane structure together with your steel building, so the shed and the crane work as one strong system. Whether you run a fabrication unit, an auto plant or a busy warehouse, we build the right crane support for your load, your span and your budget.
Years of Fabrication Experience
Projects Delivered
Client Satisfaction
Global Delivery Locations
IS 800:2007
STEEL DESIGN STANDARD FOLLOWED
ENGINEERING BASICS
What Is a Crane System in a PEB Building?
A crane system is the steel structure inside a building that carries an overhead crane. It includes crane columns or brackets, runway beams (also called gantry girders), rails, lateral ties, end stoppers and, where needed, walkways for maintenance.
A normal shed is built only for roof, wind and light loads. A crane adds much more. It puts heavy wheel loads on the beams, pushes sideways when it starts or stops, and creates vibration. If the building is not designed for this, you can face cracked joints, bent beams, worn wheels and unsafe lifting.
This is why we design a crane integrated PEB from the start. The main frame, columns and foundation are checked for crane loads in the same design, not fixed later. The result is a safer, longer-lasting building.
PLAN BEFORE YOU BUILD
Do You Need a Crane System in Your Industrial Shed?
Many factory owners ask this before they invest. Here is a simple way to decide.
You need a crane system if:
You lift heavy items such as machines, dies, coils, pipes, steel plates or finished goods every day.
Forklifts and manual handling slow down your production line.
Your workers lift loads by hand, which is risky and slow.
You plan to add a crane in the next few years.
You may not need one if:
You only store light goods that a forklift can easily move. In that case, a standard warehouse layout can save you money.
If you are not sure, share your daily lifting work with us. We will tell you honestly whether a crane is worth it. If you are planning a crane system for factory building, it is always cheaper to plan the crane on day one than to strengthen the shed later.
BUILT TO YOUR LOAD & SPAN
Types of Crane Systems We Build
Different work needs different cranes. Here are the four types we design supports for.

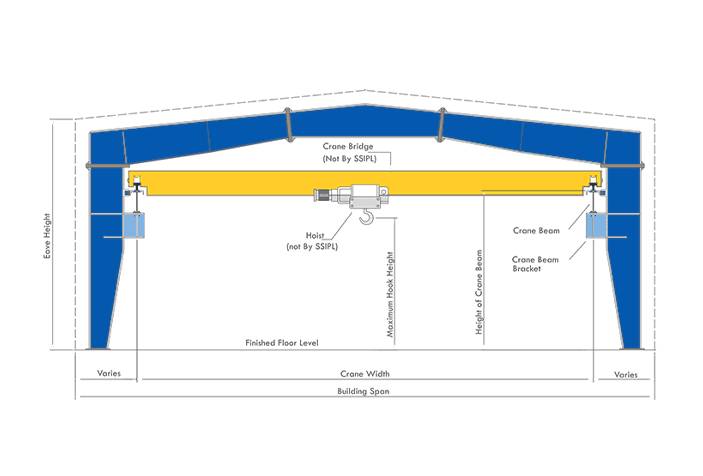

HEAVY DUTYTop Running Crane System
The crane travels on rails placed on top of runway beams. It is the strongest option and suits heavy loads, wide spans and daily use. This is the most common choice for an EOT crane system for PEB buildings such as steel plants, engineering works and heavy fabrication units.

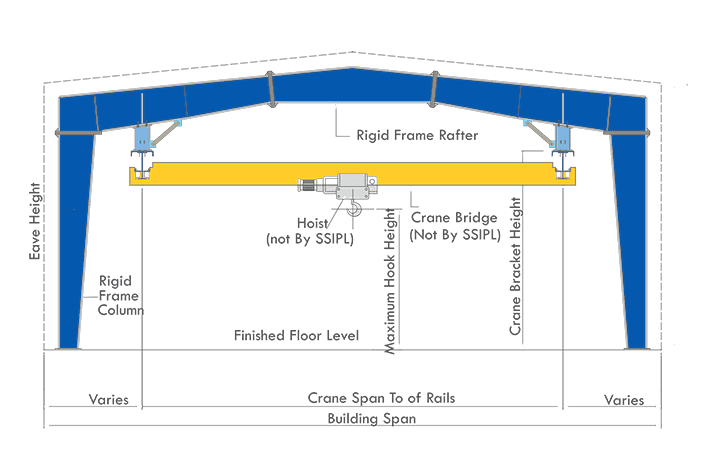

SPACE SAVINGUnderhung Crane System
The crane hangs from the bottom flange of the beam. It saves floor space and works well for light to medium loads. It is a good fit for assembly lines, workshops and packing areas where columns should not block the floor.

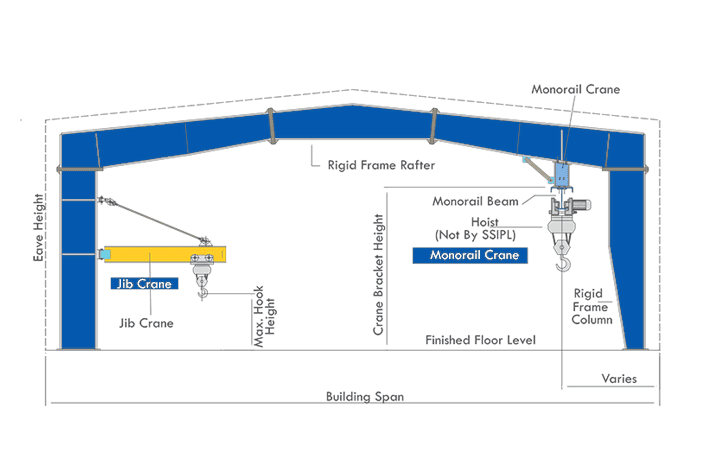

SINGLE POINTJib Crane System
A jib crane has a rotating arm fixed to a column or a floor stand. It serves one work area, such as a machine, a welding bay or a loading point. It is simple, quick to use and easy to install.
Not sure which type fits your plant?
Tell us your load, building size and daily use. We will suggest the most practical option, not the most expensive one.
TALK TO OUR ENGINEERSWHAT YOU GET
Our Scope of Supply
We supply everything that supports the crane inside your PEB building:
- Main frames, columns and rafters, strengthened for crane loads
- Crane brackets and crane columns
- Crane runway beams and rail seating
- Lateral ties, bracing and end stoppers
- Walkways, catwalks and ladders for maintenance
- Roof sheets, wall cladding, ventilation and accessories
- Site erection support
Please note: we build the structure and the crane runway system. The crane itself is supplied by you or your crane vendor. We work directly with your crane vendor to get the correct data, so the structure matches the crane exactly.
THE KAIZEN ADVANTAGE
Why Choose KAIZEN STEEL BUILDING
SOLUTIONS PVT LTD?
Buyers often compare many suppliers. Here is what you get when you work with us.
One team, one design
We design the building and the crane structure together. You do not need to manage two vendors or fix gaps between them.
Design as per Indian standards
We follow IS 800:2007 for steel design, IS 875 for wind and other loads, and IS 1893 for earthquake loads. Crane loads are taken from your crane maker's data.
Accurate factory fabrication
Crane rails need very tight alignment. Our parts are cut, drilled and checked in the factory, so they fit properly at site. Good alignment means less wheel wear and smoother crane running.
Built for the future
We can plan extra bays or a higher crane capacity for later, so your plant can grow without rebuilding.
Honest, clear communication
You receive a general arrangement drawing before you decide. We explain costs in simple words, with no hidden items.
India and UAE reach
We are based in Delhi and also have an office at RAKEZ, Dubai, so we can support projects in both regions.
RETURN ON INVESTMENT
Benefits of a Crane Supported PEB Structure
Faster material movement
Heavy items move quickly with less labour.
Better safety
Engineered load paths reduce the risk of overload and accidents.
Smart use of space
Overhead lifting keeps your floor free for work.
Quicker construction
PEB parts are made in the factory, so building time is shorter than conventional construction.
Lower maintenance
Correct design and alignment reduce repair and downtime.
Cost control
Steel is used only where it is needed, so there is less waste.
INDUSTRIES WE SERVE
Where Our Industrial Crane Buildings Are Used
We supply crane supported sheds for:
Steel fabrication and heavy engineering workshops
Automobile and auto component plants
Pipe, cement and process industries
Warehouses and logistics hubs handling heavy stock
Machine shops, maintenance sheds and power sector facilities
Each project is designed for its own load, span and working pattern, so we do not copy one design for every customer.
ENGINEERING APPROACH
How We Design a Crane System
Collect crane data
We take capacity, span, wheel loads and duty class from the crane maker.
Check all loads
We calculate crane, wind, seismic and dead loads together.
Design frames and runway
We strengthen columns and rafters and size the runway beams and brackets.
Check deflection and vibration
We keep movement within safe limits so the crane runs smoothly.
Prepare shop drawings
You review and approve them before fabrication starts.
Fabricate and inspect
Parts are made in the factory with quality checks.
Dispatch and erect
We send parts to site and support the installation.
GET AN ACCURATE QUOTE
What We Need From You to Start
The more details you share, the faster we can send an accurate quote. Please keep these ready:
If you do not have all this, do not worry. Send what you have, and our engineers will guide you.
Crane type (EOT, underhung, jib or monorail) and number of cranes
Crane capacity in tonnes and duty class
Crane span, wheel loads, wheel base and rail size
Building length, width and clear height under the hook
Site location and soil report, if available
Any plan for a second crane or future expansion
OUR EXPERIENCE AND TRUST
A partner you can check, call and visit
When you invest in a crane system, you need a partner you can check, call and visit. Here is what you get with KAIZEN STEEL BUILDING SOLUTIONS PVT LTD.
A real company you can reach
KAIZEN STEEL BUILDING SOLUTIONS PVT LTD has offices in Pitampura, Delhi, and at RAKEZ, Dubai. You can call us on +91-8368273287 or book a 30-minute call with our engineers.
Design that follows Indian standards
We design every crane supported building as per IS 800:2007, IS 875 and IS 1893, using wheel loads and span data from your crane maker.
One team from start to finish
We handle design, fabrication and installation support, so you always know who is responsible.
Clear steps before you commit
We call you within one working day, then send a general arrangement drawing and a rate. There is no pressure to decide on the first call.
Delhi & Dubai
OFFICES IN INDIA & UAE
FROM OUR PROJECTS
Shot on Site, Unedited

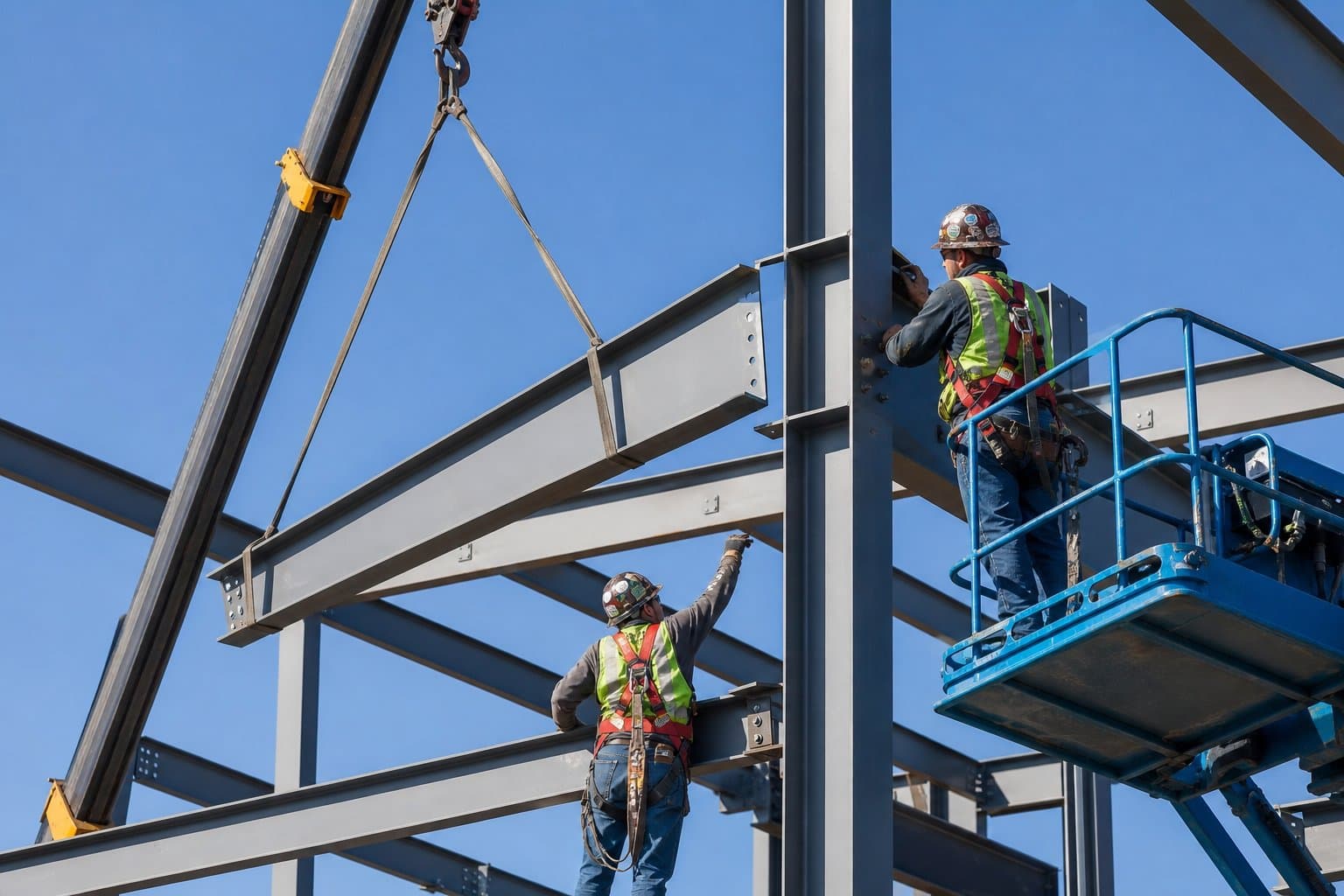

Crane column erection at site

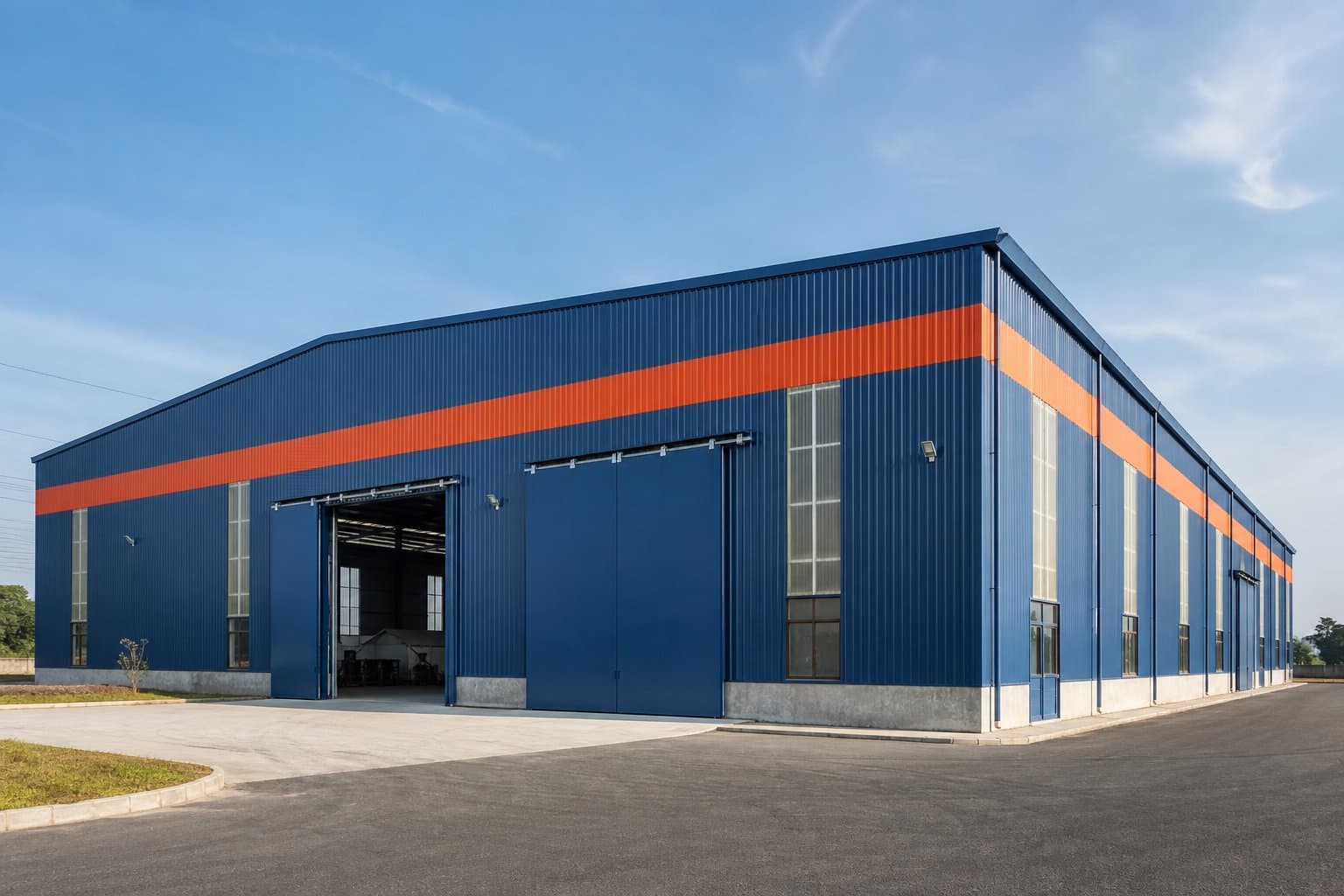

Completed crane supported shed

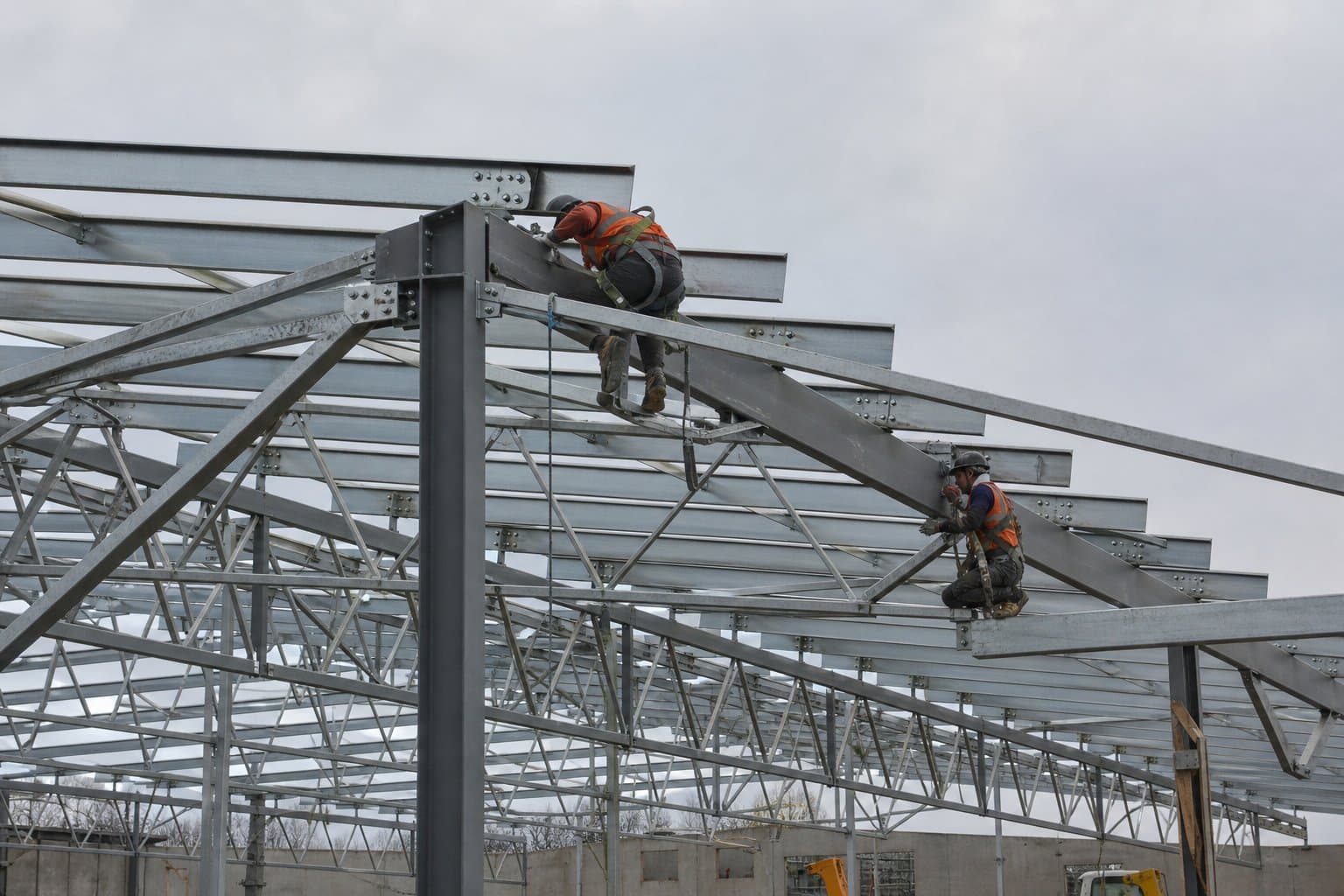

Runway beam & purlin installation
CLIENT FEEDBACK
What Our Clients Say
Kaizen designed our crane columns and runway beams together with the main shed. The EOT crane runs smooth and we had zero alignment issues at handover.
Operations Head
AUTO COMPONENT PLANT, MANESAR
We needed a jib crane for our welding bay without disturbing the existing structure. Their team checked the frame loads and delivered exactly on schedule.
Plant Manager
FABRICATION UNIT, FARIDABAD
Clear drawings, honest costing and a single point of contact through design, fabrication and erection. Exactly what we wanted for our warehouse crane bay.
Project Director
LOGISTICS HUB, NEEMRANA
