Crane Building Systems with PEB Structures: A Practical Design & Planning Guide

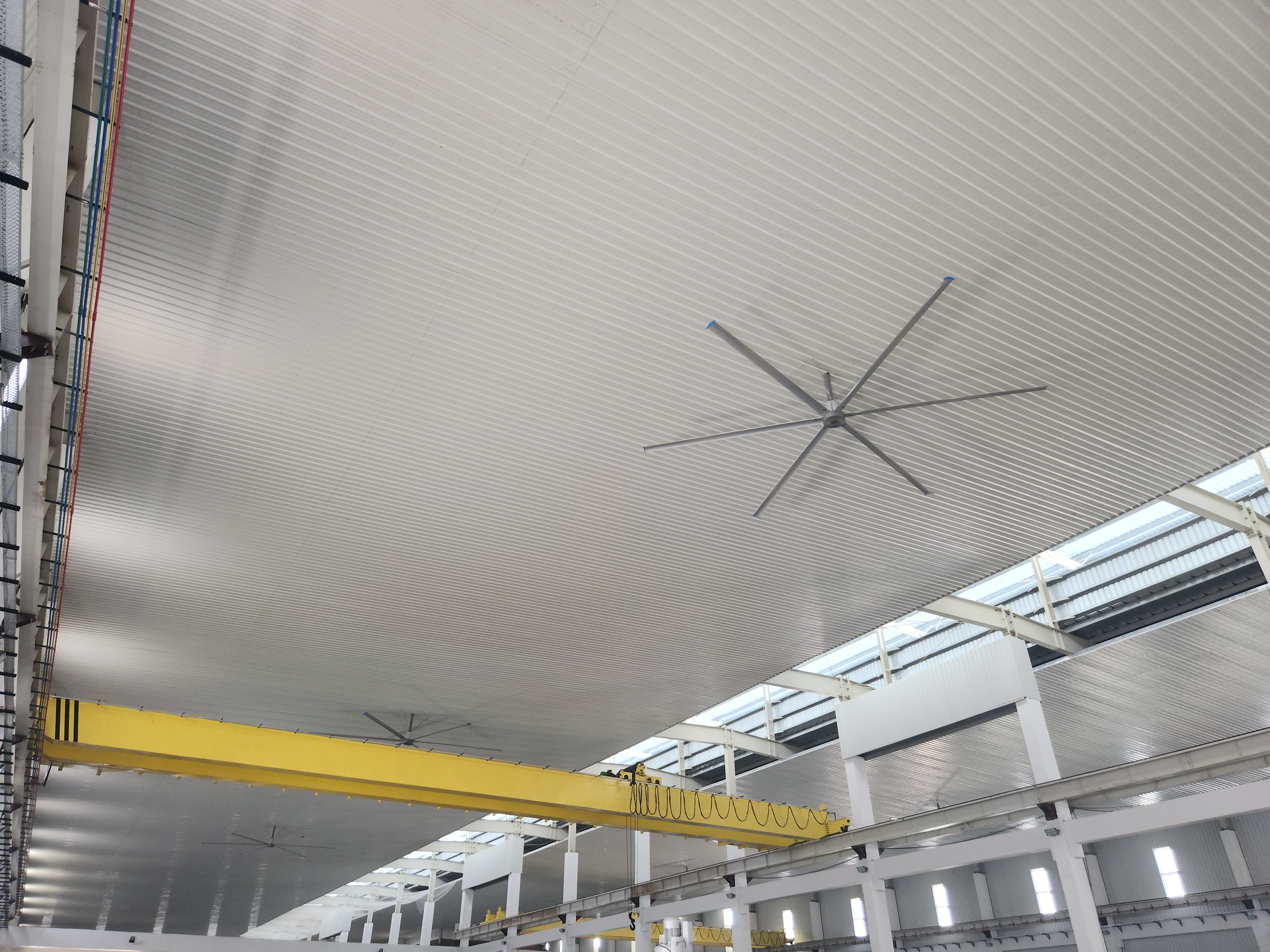

Kaizen Smartbuild's current PEB product information identifies crane systems as one of its seven PEB structural applications and states that its crane-system offering includes integrated overhead crane runways for EOT cranes from 2 MT to 200 MT.

For any crane building project, however, the appropriate solution depends on the crane capacity, span, runway arrangement, hook height, building geometry, operating environment, structural loads, foundation conditions and applicable local requirements.

Crane systems introduce loads and operational requirements that can significantly affect structural design. A crane-ready building may need to accommodate: Crane dead weight, Lifted loads, Dynamic effects, Horizontal forces, Longitudinal forces, Runway loads, Impact effects, Braking forces, Equipment maintenance loads, Wind effects for applicable outdoor or exposed systems, Seismic effects where applicable.

For this reason, adding a crane to an existing PEB that was never designed for crane loads can require structural strengthening, new supports or other modifications.

PEBSTEEL similarly notes that adding a crane system to a completed pre-engineered building that was not originally designed to support it can be cumbersome and uneconomical because the building may require strengthening, crane brackets, runway beams and other supporting components.

The practical takeaway: If a business expects to use an overhead crane in the future, that possibility should be communicated to the structural engineering team during the initial building design. Planning early can help coordinate: Crane capacity, Building geometry, Column spacing, Runway elevations, Hook height, Structural loads, Foundation requirements, Maintenance access, Electrical requirements, Future expansion requirements.

Crane buildings require more than a simple floor-load calculation. The engineering assessment can consider: Dead loads, Live loads, Crane loads, Impact effects, Horizontal forces, Longitudinal forces, Wind loads, Snow loads where applicable, Seismic loads where applicable, Equipment loads, Maintenance loads, Roof loads, Bracing forces, Foundation reactions.

For US projects, ASCE/SEI 7-22 is identified by the American Society of Civil Engineers as the nationally adopted loading standard for general structural design and addresses hazards including dead, live, soil, flood, snow, rain, ice, seismic, wind and fire, along with load combinations.

The exact design criteria depend on the project's jurisdiction, occupancy, site conditions, structural system and applicable adopted codes.

Why Crane Load Planning Matters: A crane does not simply add weight to a building. Its movement can introduce forces that need to be transferred through the crane runway and supporting structure. For example, the structural design may need to account for: Vertical loading → load transfer from the crane into the runway and supporting structure. Horizontal loading → forces generated during crane movement, braking or other operational conditions. Longitudinal loading → forces associated with crane travel along the runway. Impact and dynamic effects → additional considerations arising from crane operation and lifting activity. These loads should be determined by the qualified engineering team using the actual crane specifications and applicable design criteria.

Yes. A PEB can be designed to accommodate crane systems when the crane requirements are incorporated into the structural engineering from the beginning.

Kaizen's current website lists crane systems as a PEB application and identifies integrated overhead crane runways for EOT cranes.

The design should establish: Crane capacity, Crane type, Runway arrangement, Building span, Bay spacing, Hook height, Crane elevation, Structural loads, Connection requirements, Foundation requirements, Maintenance access, Future equipment requirements.

A crane should not be assumed to be compatible with a standard PEB configuration simply because the building is made from steel.

Possibly, but an existing building must be assessed before a crane is added or upgraded.

The assessment may need to review: Existing columns, Main frames, Crane-supporting members, Connections, Foundations, Existing loads, Structural condition, Building modifications, Proposed crane capacity, Runway configuration, Applicable code requirements.

OSHA's overhead and gantry crane requirements state that modifications and rerating require the crane and supporting structure to be thoroughly checked for the new rated load by a qualified engineer or the equipment manufacturer.

For US building alterations and additions, the applicable adopted building code and existing-building requirements must also be evaluated. The 2024 International Existing Building Code contains provisions addressing alterations, additions and changes of occupancy, including specific requirements for additions.

A US crane building project should be approached as a jurisdiction-specific engineering project rather than as a generic building package. Depending on the project, the design team may need to coordinate requirements relating to: Applicable building codes, Structural loading, Wind, Snow, Seismic conditions, Fire and life safety, Occupancy, Accessibility, Energy requirements, Crane safety, Equipment requirements, Local permitting, Site conditions, Foundation design.

ASCE/SEI 7-22 provides general structural loading criteria, while OSHA's 29 CFR 1910.179 addresses overhead and gantry crane requirements for applicable workplaces.

The applicable state and local requirements should always be confirmed by the project's qualified design professionals and authority having jurisdiction.

Important distinction: Compliance with an engineering standard or workplace regulation does not mean that a building automatically satisfies every requirement applicable to a particular US project. The project team should confirm the applicable adopted codes, standards, permits and authority requirements before construction.

There is no reliable universal price per square foot for a crane-integrated PEB. Project cost can vary based on: Building area, Crane capacity, Crane type, Crane span, Runway length, Building height, Steel tonnage, Column spacing, Crane runway beams, Crane brackets, Connections, Foundations, Roofing, Wall cladding, Insulation, Doors, Electrical systems, Fire protection, Site conditions, Transportation, Erection requirements, Local engineering and permitting, Existing-building modifications, where applicable.

The crane itself may also represent a separate procurement package depending on the project's contracting structure.

For a meaningful quotation, the supplier and engineering team should receive the building dimensions, site location, crane requirements, intended use, loading information and available drawings.

A preliminary project enquiry should ideally include:

Building Information: Site location, Building length, Building width, Required clear height, Proposed floor area, Number of bays, Intended use.

Crane Information: Crane type, Rated capacity, Crane span, Runway length, Hook height, Lift frequency, Number of cranes, Operating environment.

Structural Information: Soil or geotechnical information if available, Existing drawings for modification projects, Foundation information, Existing structural details, Equipment loads, Future expansion requirements.

Architectural and Services Information: Door requirements, Loading areas, Office areas, HVAC, Fire protection, Electrical requirements, Lighting, Ventilation, Insulation.

The more complete the initial information, the easier it is for the engineering team to establish a suitable structural concept.

If future lifting requirements are likely to increase, consider them before the first structural design is finalized.

A practical planning sequence is: Define current lifting requirements, Estimate realistic future crane capacity, Determine the required building envelope, Establish crane span and runway length, Coordinate hook height and clearances, Evaluate structural and foundation implications, Coordinate electrical and service requirements, Plan maintenance access, Review applicable codes and permitting requirements, Document future expansion assumptions.

Planning for a possible future crane does not necessarily mean installing the equipment immediately. It means making informed structural decisions before fabrication makes later changes more complicated.

Kaizen Smartbuild identifies itself as a turnkey PEB solution provider and states that it provides structural design, steel fabrication, roofing, cladding, accessories and installation. Its current website identifies a 250,000 sq ft manufacturing facility in Sonipat, Haryana, a stated annual production capacity of 24,000 MT and BIM-enabled design capabilities.

Its product information specifically includes crane systems among its PEB applications and states that integrated overhead crane runways are available for 2 MT to 200 MT EOT crane applications.

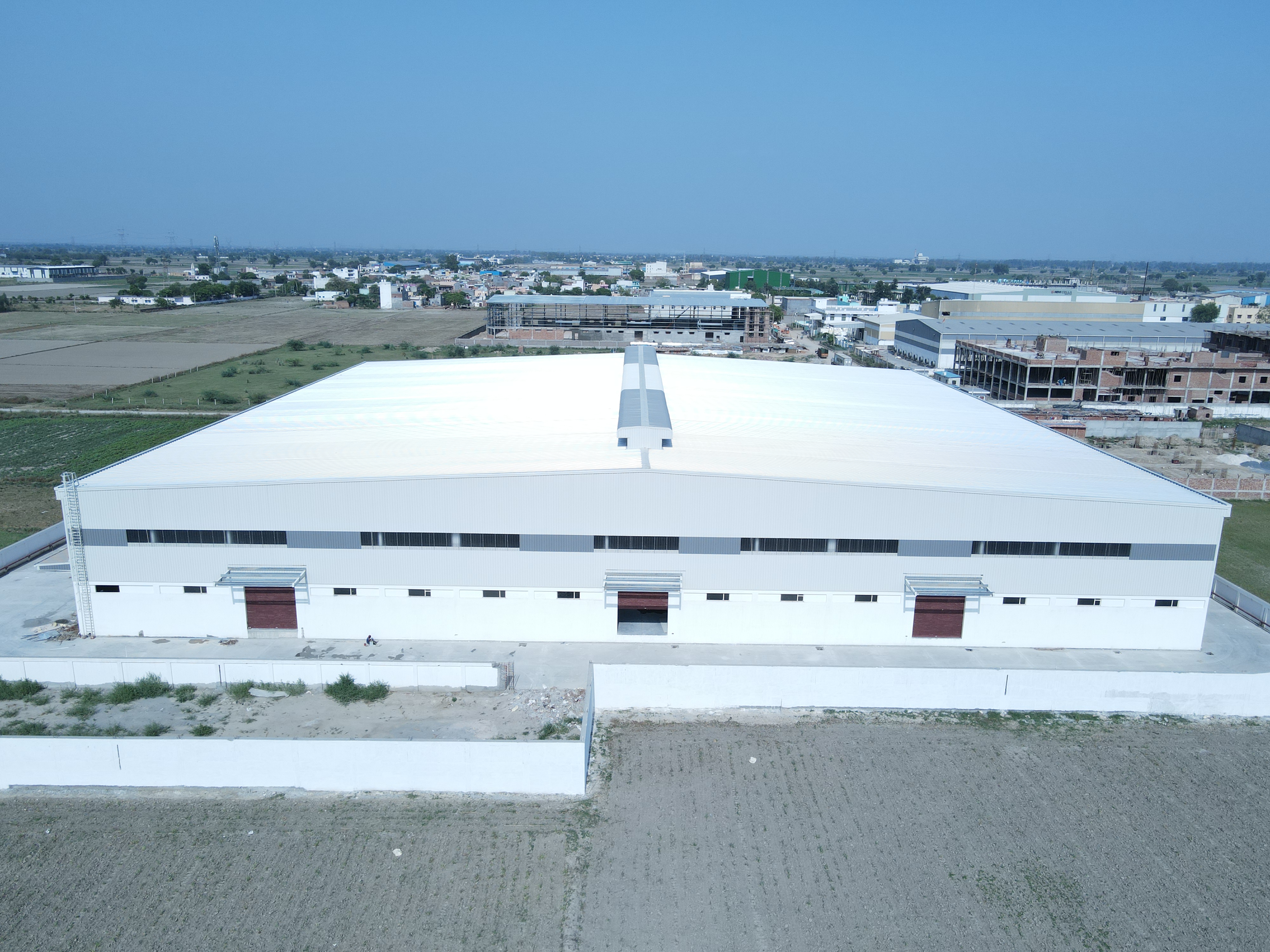

Kaizen's current project portfolio also identifies industrial and manufacturing work, including projects associated with clients such as Goyal Inc, Fabcare, AIPL and others displayed on its website.

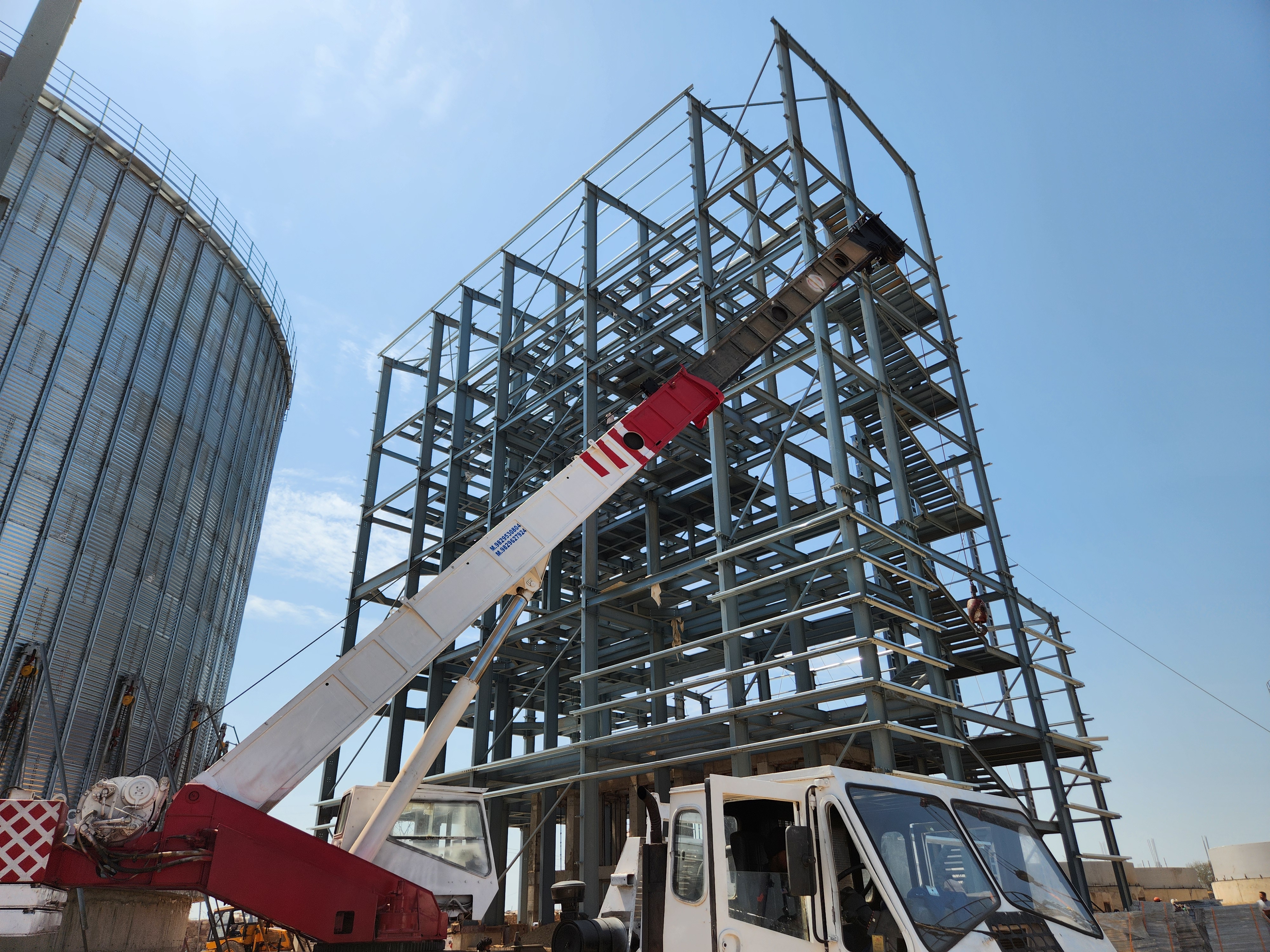

For a crane building, the relevant question is not simply whether a company can fabricate steel. The design and delivery process should account for the relationship between the building, crane loads, supporting structure, foundations, equipment and site requirements.

Kaizen's Manufacturing and Quality Capabilities: Kaizen's website identifies its PEB manufacturing operation in Sonipat and describes CNC fabrication, quality inspection, automated welding, surface treatment, painting and finishing, packaging and dispatch as part of its manufacturing capabilities. Its certification page currently lists ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certifications, along with factory certification. These claims should remain consistent with the current certificates available from Kaizen before publication. The company also states that it has a Dubai office and serves international markets, while its primary manufacturing and project footprint presented on the website is centered on India and the UAE.

Before selecting a PEB supplier or contractor, ask: Has the team handled crane-integrated structures? Can they coordinate crane requirements during structural design? How are crane loads incorporated into the building model? Who designs the crane runway? Who is responsible for foundation coordination? How are connections documented? How are changes handled after design approval? What project drawings are required before fabrication? Which standards and local requirements will govern the project? Who coordinates the crane equipment supplier? What information is required for a quotation? What evidence of similar industrial work can be reviewed?

For US projects, also confirm the company's actual delivery model, engineering responsibilities, local design-professional involvement, permitting support and project-specific compliance capability. Do not assume that an international PEB supplier is automatically a US code-compliant design-build provider.

Designing the Building Before Defining the Crane: A building designed without crane requirements may later require expensive structural modifications.

Focusing Only on Crane Capacity: Rated capacity is important, but span, hook height, runway length, operating frequency and other requirements also affect the building design.

Ignoring Foundation Requirements: Crane-related reactions can affect foundation design. Foundation requirements should be coordinated with the structural system rather than treated as a separate afterthought.

Adding a Crane to an Existing Building Without an Assessment: Existing columns, frames, connections and foundations may not have been designed for the proposed crane.

Leaving Maintenance Access Until the End: Cranes and runway systems require appropriate access for inspection, maintenance and servicing.

Treating 'PEB' as a Standard Template: PEB systems are engineered systems, not one-size-fits-all building kits. Crane buildings require project-specific structural design.
