Warehouses, factories, cold rooms and commercial buildings are increasingly built with PUF panels. Builders choose them because they insulate well, go up quickly and weigh far less than masonry. So what is a PUF panel, and when does it make more sense than bricks, concrete or separate insulation layers? This guide from Kaizen PreFab answers both questions in plain terms.
PUF Panels
What Are PUF Panels and Why Are They Replacing Traditional Construction Materials?
Published October 6, 2026
Quick Answer
What Is a PUF Panel?

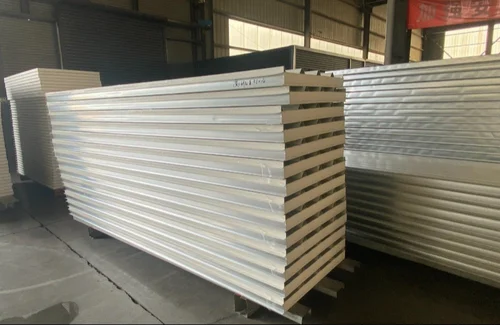

A PUF panel is a factory-made insulated sandwich panel. PUF stands for polyurethane foam. A rigid foam core is bonded between two metal sheets, usually coated steel. The foam resists heat flow, and the metal faces protect the core and give a finished surface.
Because insulation and cladding come as one ready-to-fit unit, PUF panels are widely used for walls, roofs, partitions and temperature-controlled enclosures.
Key takeaway
- PUF panels combine insulation and metal cladding in a single prefabricated product.
- They suit warehouses, factories, cold storage, clean rooms and commercial buildings.
- Their main strengths are thermal performance, faster installation and low weight.
- Joint design, thickness and installation quality matter as much as the panel itself.
- They are not right for every project, so fire, moisture and structural needs must be checked first.
What Is a PUF Sandwich Panel Made Of?
1. Polyurethane foam core. This closed-cell foam is the insulating layer. It slows the movement of heat between the outside and the inside of the building.
2. Metal facings. Two outer sheets protect the foam and form the visible wall or roof surface. The sheet type, coating and thickness are chosen to suit the environment, whether coastal, industrial, humid or hygiene-sensitive.
3. Joint system. Panels lock together through tongue-and-groove, hidden-fix or camlock joints. Tight, well-sealed joints keep air and moisture out. Even a high-quality core underperforms when joints are poorly fitted.
How Does PUF Insulation Work?
PUF insulation works by slowing heat transfer. In hot weather, it limits how much outdoor heat enters the building. In a cold room, it holds the low internal temperature and keeps warm air out. That steadier indoor climate can reduce cooling or heating demand, so equipment runs less hard.
Real-world performance depends on more than the foam:
- Panel thickness and core quality
- Joint sealing and air leakage
- Fasteners, flashings and corner details
- Doors, windows and other openings
- Roof design and drainage
- The overall building envelope
- Installation workmanship
Why Choose PUF Panels? The Main Benefits
1. Strong thermal insulation
The closed-cell core has low thermal conductivity, which helps keep interiors comfortable and temperature-sensitive goods stable.
2. Faster construction
Panels are made in a controlled factory and delivered ready to fit. Once the steel frame is up, walls and roofs can be enclosed quickly. This cuts the brickwork, plastering and curing stages of conventional building.
3. Lightweight construction

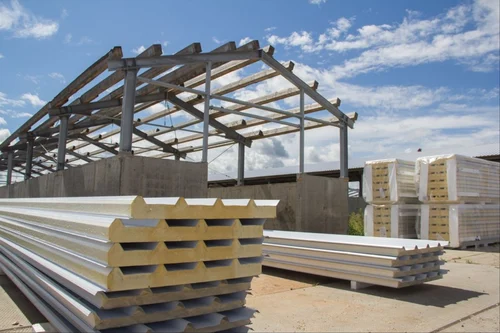

PUF panels are much lighter than masonry. They are easier to transport and lift, and they place less load on the frame. This is why they pair so well with PEB and steel structures. The structure still has to be engineered for the project’s actual loads.
4. Lower operating costs over time
Better insulation can mean lower energy use. The upfront cost may be higher than basic insulation, but savings on cooling, heating and maintenance can make up the difference. Actual savings depend on climate, building use and installation quality.
5. Consistent factory quality
Controlled production gives uniform panel dimensions and core construction. That makes site planning and installation more predictable.
6. Cleaner, less wet work
Panels reduce the need for mortar, plaster and curing water, so the site stays tidier and more organised.
7. Durability and a cleaner finish
Coated metal faces resist weather and are easy to clean when correctly specified. With sound installation and periodic maintenance, panels can serve for many years.
PUF Panels vs Traditional Construction Materials
The right choice depends on the project, not on a blanket claim that one material always wins.
| Factor | PUF Panels | Traditional Construction (Brick/Concrete + Insulation) |
|---|---|---|
| Installation | Prefabricated, quick to fit | Several site-based stages |
| Insulation | Built into the panel | Usually added separately |
| Weight | Lightweight | Heavier masonry or concrete |
| Wet work | Minimal | Mortar, plaster and curing |
| Temperature control | Well suited to insulated envelopes | Depends on wall build-up |
| Typical use | Industrial, commercial, cold storage | Very wide range of buildings |
PUF panels vs brick walls. Brick suits many building types. When you need fast enclosure and integrated insulation, PUF panels deliver both in one system. A brick wall typically needs extra insulation, plaster and finishing to match.
PUF panels vs concrete. RCC remains essential for foundations, floors and structural elements. PUF panels are not a replacement for every concrete component. Their role is the insulated wall or roof envelope.
PUF panels vs traditional insulation (fibreglass, mineral wool, cellulose). Traditional insulation is often cheaper upfront and widely available, and some options such as cellulose use recycled content. PUF panels usually offer better thermal performance per thickness, faster installation and a ready finished surface. The trade-off is a higher initial cost. For small, budget-limited jobs, traditional insulation may be enough. For larger or temperature-critical buildings, PUF panels often give better long-term value.
PUF Panel Applications
Warehouses and distribution centres. Insulated walls and roofs protect stock from heat and weather.
PUF panels for cold storage. These are used for cold room walls, ceilings and partitions. Performance depends on thickness, joint design, doors, floor insulation and the refrigeration system working together.
Factories and industrial buildings. PUF panels work for external cladding, roofing and controlled production areas, especially on steel structures.
PUF roof panels. They combine the roof surface and insulation in one prefabricated sheet. Slope, drainage, fasteners, flashings and weather sealing all need careful detailing.
Food processing, pharma and clean rooms. Smooth, cleanable surfaces support hygiene, but fire safety and regulatory requirements must be checked for each facility.
Commercial and prefab buildings. Offices, site cabins, modular structures and showrooms use insulated panels where speed and comfort matter.
What to Check Before Choosing PUF Panels
- Thickness: match it to the required thermal performance. A general warehouse and a freezer room have very different needs.
- Core specification: confirm the density and manufacturing quality of the foam.
- Metal facing: consider corrosion exposure, weather, cleaning needs and appearance.
- Joint type: choose a profile suited to the finish, sealing and installation method.
- Fire performance: do not assume all panels perform the same. Review the tested system and applicable codes. Where fire rating is critical, PIR or rockwool panels may also be worth considering.
- Installation: check alignment, fasteners, flashings, openings and sealing details.
- Maintenance: inspect periodically for damaged joints, loose fasteners, sealant wear and corrosion, particularly on roofs.
Are PUF Panels Right for Every Building?
No. They work very well in many situations, but projects with strict fire, acoustic, hygiene or moisture requirements may need different panel systems. The best approach is to compare options against your actual requirements rather than picking a panel because it is popular.
Why Choose Kaizen PreFab for PUF Panels?
Kaizen PreFab offers PUF panel solutions as part of complete PEB and steel building systems. We treat the panel as part of the whole building, not a standalone product. Our team coordinates panel selection with the steel structure, roof, walls, openings and joints, so the finished envelope performs as designed.
What you can expect from us:
- Panel recommendations based on your application, whether warehouse, factory, cold storage or commercial building
- Coordination between panels and the PEB structure
- Attention to joints, fasteners, flashings, roof drainage and openings
- Engineering guidance before the quote, not after
Planning a project? Share your plot size and requirements with Kaizen PreFab, and our team will help you choose the right PUF panel specification.
Conclusion
PUF panels give modern buildings strong thermal insulation, fast installation and light weight in one factory-made system. They are a practical choice for warehouses, factories, cold storage and commercial projects, and often a more efficient alternative to conventional wall and insulation methods. The right thickness, facing, joint design and installation make the difference between a panel that merely fits and one that performs for years.
Shivank Garg is the Director of Engineering at Kaizen Steel Building Solutions Pvt. Ltd. and an IIT Kanpur alumnus. He leads structural design, engineering standards, design automation and quality systems to support reliable, high-quality pre-engineered steel building solutions. His work focuses on engineering accuracy, technical documentation and maintaining consistent design standards. He helps ensure that engineering plans meet project requirements before they move to the manufacturing stage.
Last updated November 3, 2026
